Hobart Ecomax F504 Undercounter Dishwasher
Hobart Ecomax F504 Undercounter Dishwasher
Couldn't load pickup availability
- Interest Free Credit
- Free Next Day Delivery Available
- Available for Rental
Features
Features

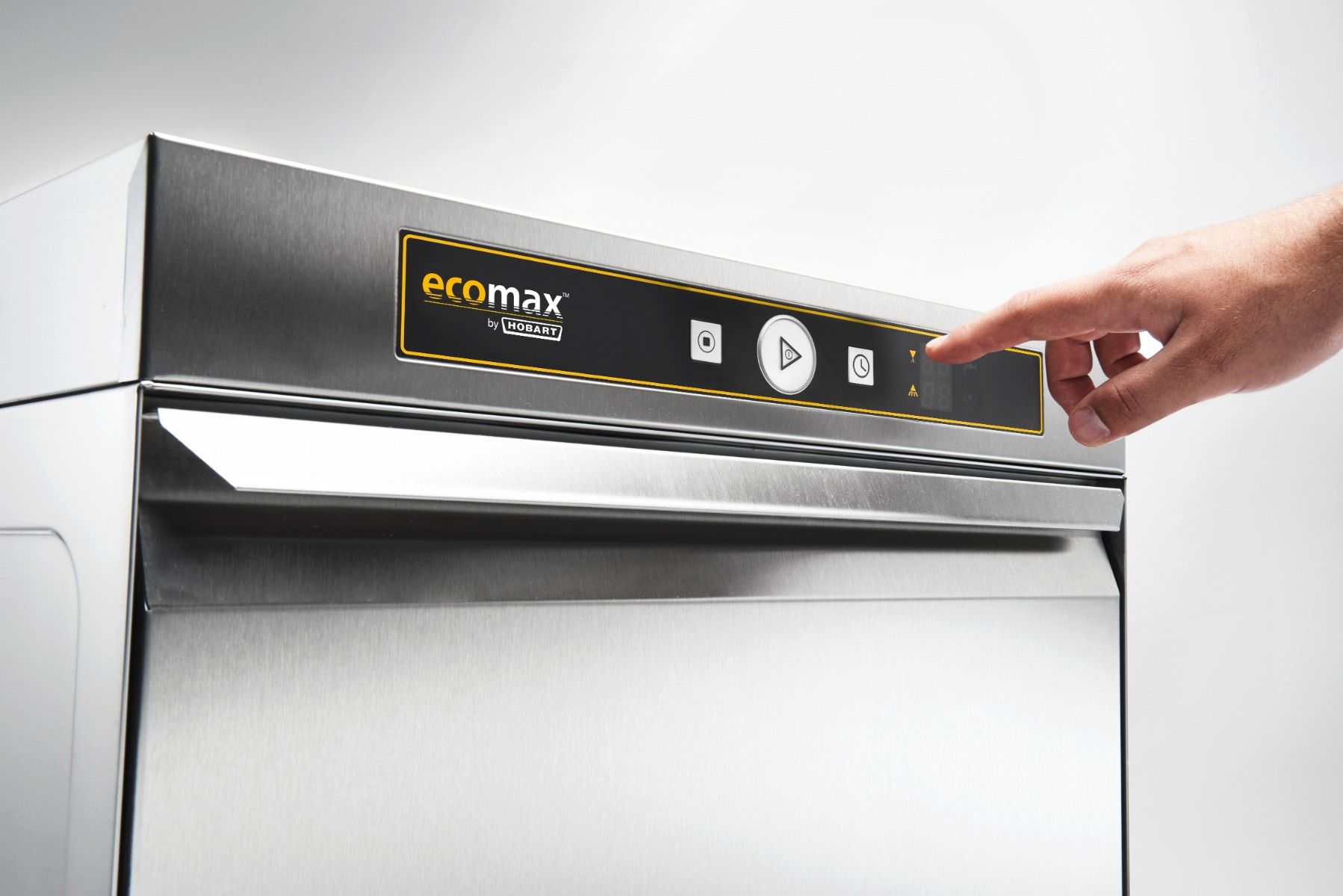

An updated control panel makes operating your unit easier than ever
Tackling various levels of soiling is made even easier with the new 180s cycle, giving you greater flexibility
New hygiene cycle to help keep your machine as clean as possible
New ESave cycle saves on electrical consumption
Reduce your operating costs thanks to the reduced rinse water consumption (on short 60s cycle)
Wash cycles: 60, 120, 180 seconds, plus hygiene cycle and ESave cycle
Up to 60 racks (1080) per hours (500 x 500mm basket - 18 plates)
1 x Plate rack and 1 x Cutlery basket
Double skinned door design - reduces heat and noise emissions
Compact 25 litre wash tank, less water consumption, less electric to heat, lower running costs

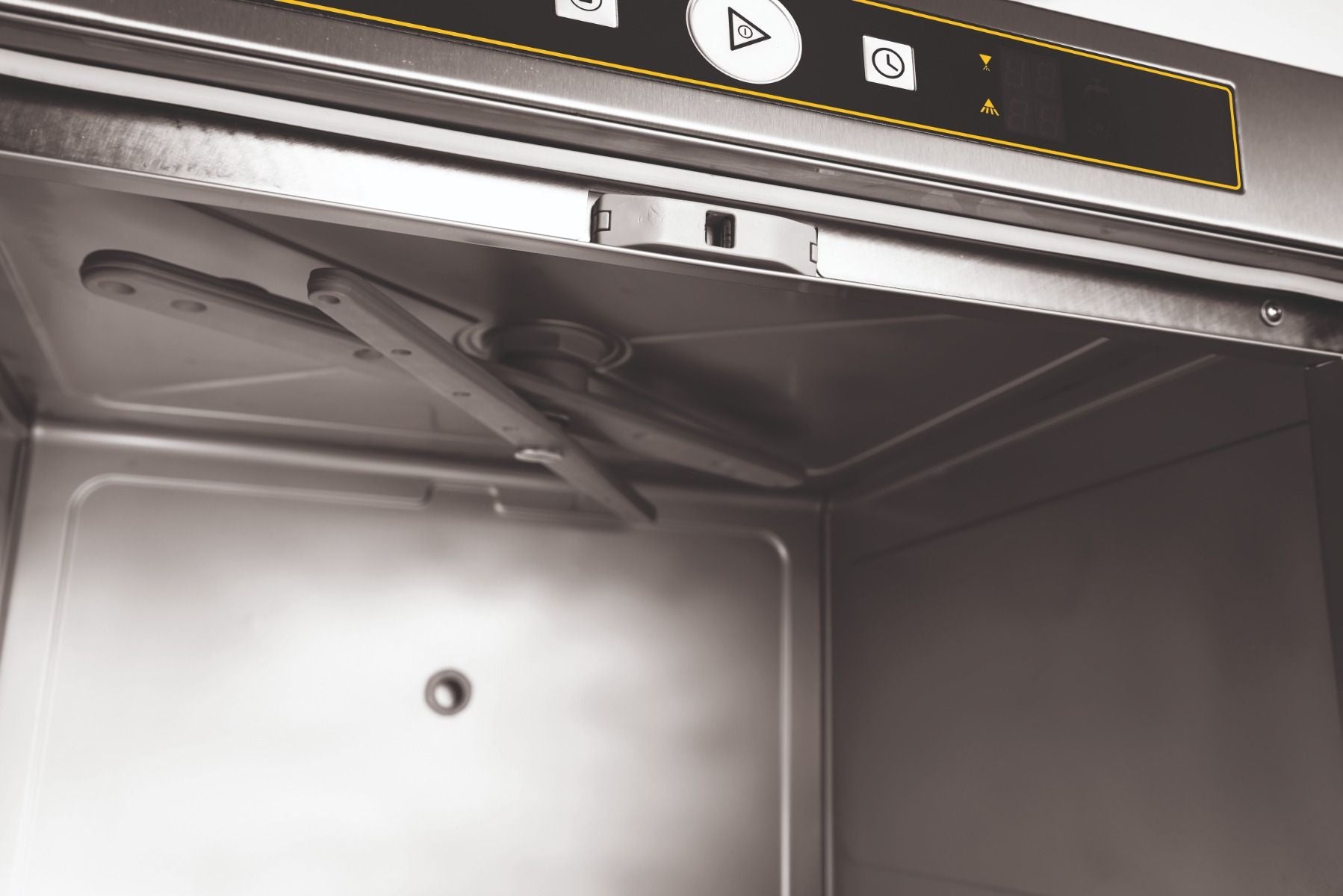

Rotating upper and lower rinse arms with indented anti-block jets
Supplied with integral fitted drain pump
Thermostop rinse control which ensures that the machine will only rinse at the correct temperature
Class A Airgap – allows direct connection to mains and complies with all water authority bye-laws.
Integral booster pump, detergent and rinse aid dosing equipment
Electronic soft touch controls
Digital temperature display
WRAS Approved
Made in Germany
Specifications
Specifications
Wash Temperature - 60 Degrees
Rinse Temperature - 82 Degrees
Wash Tank Capacity - 25 litres
Water Consumption/cycle - 2 litres
Water Pressure Req. - Cold or hot feed, 0.8-6 BAR (not to exceed 60°)
Electrical Loading - 4.1kW/20Amp 230/50/1, Switchable to 2.2kW/13Amp 230/50/1, or 5.9kW/3 x 16Amp 400/50/3
Usable Loading Height - 360 (mm)
Dimensions - 820 (h) x 576 (w) x 604 (d) mm
Model Code - F504-20C
Shipping Options
Shipping Options
Free 2 - 4 Working Day Standard Delivery to UK mainland
Next Working Day Delivery Available
(Select at checkout)
Warranty
Warranty
Warranty - 1 Year Parts and Labour
Share
Description
Free Next Working Day Delivery available on orders placed before 1PM*
12 & 24 month interest free credit is available on this unit, find out more
The Hobart Ecomax F504 is a compact, heavy-duty undercounter dishwasher designed for professional kitchens that need reliable Hobart build quality in a straightforward, entry-level commercial machine.
Manufactured in Germany and engineered for everyday use, the F504 is ideally suited to restaurants, cafés, pubs, schools and care environments where space is limited but consistent wash performance is essential. Robust stainless-steel construction and a proven Hobart wash system ensure dependable results across daily service periods.
It is designed to deliver dependable commercial performance without unnecessary complication, making it easy to specify, install and operate.
Positioned within the Hobart Ecomax range, the F504 provides a practical and reliable solution for sites with modest throughput and straightforward washing requirements.
Who is the Hobart Ecomax F504 best suited to?
The F504 is particularly well suited to:
- Small to medium professional kitchens
- Sites washing plates, crockery, cutlery and light cookware
- Businesses running 1–3 services per day
- Operations upgrading from light-duty or domestic equipment
- Customers wanting Hobart reliability in a straightforward commercial dishwasher, without stepping up to the enhanced efficiency and advanced features of the Ecomax Plus or Premier ranges
For sites located in hard-water areas, the F504S model with integrated water softening may be more suitable, with an external water softener as an alternative where required.
If your site falls outside these criteria, our team can advise on whether an Ecomax Plus or Premier model would be more appropriate.
If you're still comparing options, our guide to choosing the right Hobart dishwasher provides a helpful overview of the different ranges.
Simple operation with proven commercial performance
The Ecomax F504 focuses on the fundamentals that matter most in busy kitchens:
- Intuitive automatic control system designed for ease of use
- Proven Hobart wash system
- Durable stainless-steel tank and cabinet construction
- Consistent wash results from cycle to cycle
The automatic controls provide clear cycle selection and straightforward operation, helping to reduce staff training time while maintaining reliable, repeatable wash performance throughout service.
Key performance snapshot
- Basket size: 500 × 500 mm
- Throughput: Up to 60 racks per hour
- Water consumption: Approx. 2 litres per cycle
- Wash cycles: Multiple cycle options for varying demand
- Electrical options: 13A, 20A or three-phase
Electrical flexibility for easier installation
The Hobart Ecomax F504 offers flexible electrical configuration to suit a wide range of commercial kitchen installations.
The machine can be configured to operate on a 13A supply, making it suitable for many retrofit and replacement installations. For faster recovery times and optimal performance, a 20A supply is recommended.
The F504 can also be configured for three-phase power, making it suitable for sites with existing commercial electrical infrastructure or where greater performance consistency is required.
The machine is supplied factory-set to 20A. Any electrical changes should be carried out by a qualified electrician or installation engineer. Our team can confirm suitability and electrical requirements before ordering if needed.
Why choose the Hobart Ecomax F504?
- Reliable Hobart wash performance for everyday commercial use
- Predictable running costs with efficient water usage
- Compact undercounter footprint for space-restricted kitchens
- Flexible electrical options for straightforward installation
- Built for durability with stainless-steel construction
Choosing the right Hobart dishwasher range
The F504 sits within Hobart’s clearly structured warewashing portfolio:
- Ecomax – Robust, entry-level commercial dishwashers for straightforward applications
- Ecomax Plus – Enhanced efficiency, faster cycle times and improved long-term running costs
- Premier (Profi & Premax) – Advanced wash technology, premium performance and maximum operational savings
If your kitchen has higher throughput demands, stricter efficiency targets or heavier soiling levels, the Ecomax Plus or Profi / Premax ranges provide enhanced performance, efficiency and long-term operational benefits.
Expert support & nationwide delivery
All Hobart dishwashers supplied through Hobart-Dishwashers.co.uk include:
- Expert pre-sales advice from warewashing specialists
- Nationwide UK delivery
- Optional installation and commissioning
- Manufacturer warranty
- Ongoing access to service support, chemicals and spare parts
If you are unsure whether the Hobart Ecomax F504 is the right model for your kitchen, our team can help you compare options across the full Hobart dishwasher range and confirm suitability before ordering.
Options
Stands (Optional):
A range of dishwasher stands is available to suit different installation requirements and working heights.
Water softening (Optional):
For sites located in hard-water areas, the Hobart Ecomax F504S with integrated water softening may be more suitable. Where required, external water softeners are also available to support specific installation needs.
*Terms and conditions apply. Select Next Working Day Delivery at checkout.
-
Is the Hobart Ecomax F504 suitable for a small commercial kitchen?
Yes. The F504 is designed for professional kitchens with modest throughput that need dependable wash results in a compact undercounter footprint.
-
Does the F504 have automatic controls?
Yes. The F504 uses an intuitive automatic control system designed for straightforward operation in busy kitchens.
-
Can the F504 run on a 13A supply?
The machine can be configured to operate on a 13A supply. For optimal performance, a higher supply may be recommended. Electrical changes must be carried out by a qualified electrician or installation engineer.
-
Is a built-in water softener included?
No. This model does not include an integrated softener. In hard-water areas, a softener is recommended, take a look at the F504S with built-in water softener.
-
Is the F504 suitable for glasswashing?
It can wash glassware, but for high-volume bar use a dedicated Hobart glasswasher would be more appropriate.
-
Do you offer installation and commissioning?
Optional installation and commissioning support is available. We can advise on requirements before ordering.
-
