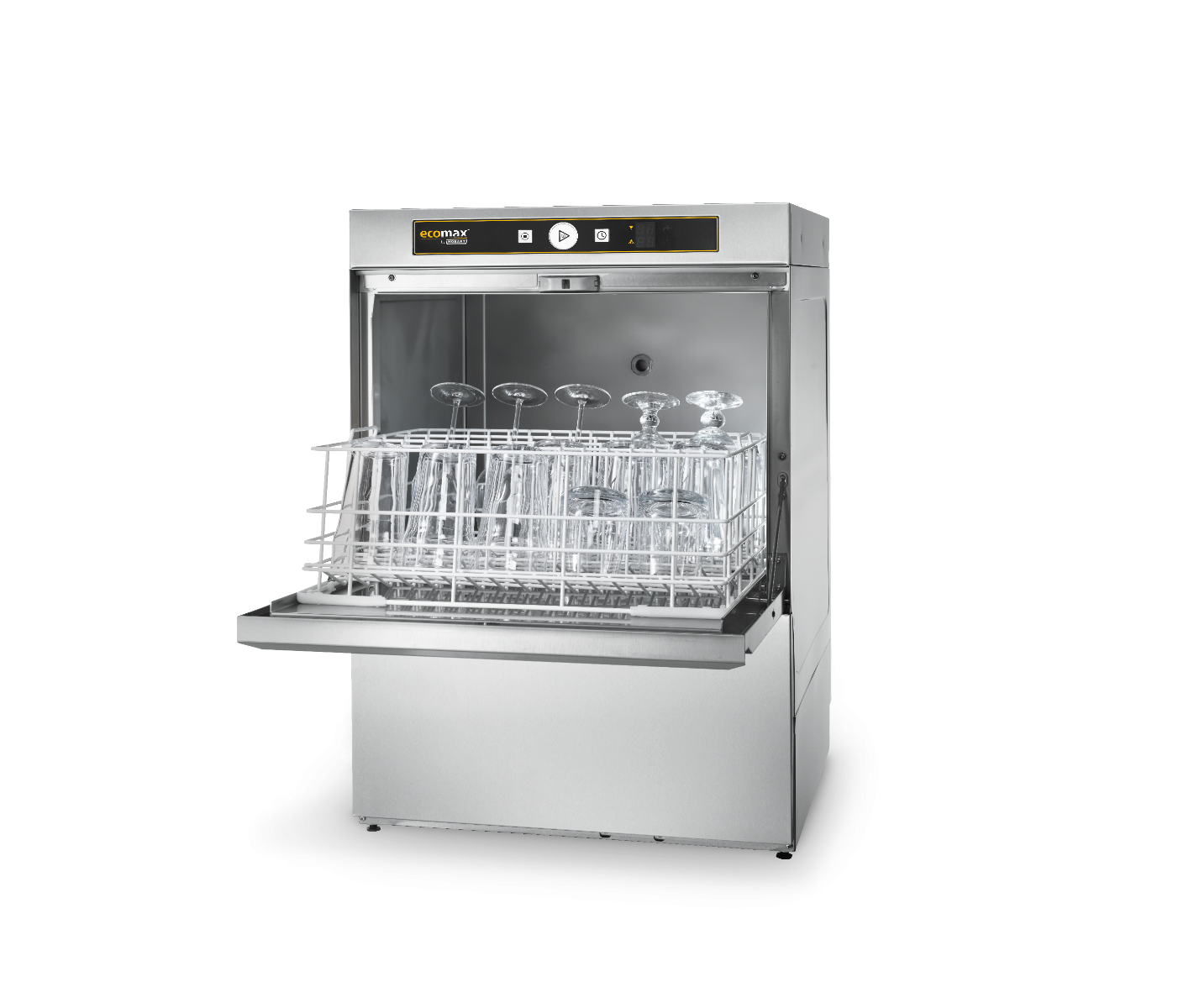

Hobart Ecomax G504 Glasswasher
Hobart Ecomax G504 Glasswasher
Couldn't load pickup availability
Features
Features
-An updated control panel makes operating your unit easier than ever
-Tackling various levels of soiling is made even easier with the new 180s cycle, giving you greater flexibility
-New hygiene cycle to help keep your machine as clean as possible
-New ESave cycle saves on electrical consumption
-Reduce your operating costs thanks to the reduced rinse water consumption (on short 60s cycle)
-A choice of 5 cycles 60, 120, 180 seconds, hygiene, and ESave
-Up to 60 racks per hour
Integral fitted drain pump
-Supplied with 1 x 4 Division glass rack and cutlery basket
356mm loading height
-Double skinned door design
-Rotating top and bottom wash arms with anti-block jets
-Thermo stop rinse control which ensures that the machine will only rinse at the correct temperature
-Class A Airgap
-Integral detergent and rinse aid dosing equipment
-Self-flushing cycle
-WRAS Approved
-Made in Germany
Specifications
Specifications
-Basket Size - 500 x 500 (mm) - 20 Pint Glasses
-Loading Height - 360 (mm)
-Wash Temperature - 50 Degrees
-Rinse Temperature - 67 Degrees
-Wash Tank Capacity - 25 litres
-Water Consumption/cycle - 2 litres
-Total Load - 4.1kW/25Amp 230/50/1 Switchable to 2.2kW/13Amp 230/50/1 or 5.9kW/3 x 16Amp 400/50/3
-Water Pressure Req. - Cold or hot feed, 0.8-6 BAR
-Dimensions - 820 (h) x 576 (w) x 604 (d) (mm)
-Model Code - G504-10C
Shipping Options
Shipping Options
3 - 5 Working Day Standard Delivery
Next Working Day Delivery Available
(Select at checkout)
Warranty
Warranty
1 year parts and labour
Share
Description
Free Next Working Day Delivery available on orders placed before 1PM*
12 & 24 month interest free credit available on this unit, find out more
The Hobart Ecomax G504 Glasswasher is highly efficient and reliable, designed to deliver excellent results while keeping your running costs low. It offers consistent and high-quality performance that rivals even higher-spec units.
Options:
- Stands - optional. If required please see our full range of Warewasher Stands
- Water softener - optional. If required please see our full range of External Water Softeners or see the Hobart Ecomax G504S
For sites in hard water areas we strongly recommend a water softener is fitted to eliminate limescale damage.
*Terms and Conditions apply, select Next Day Delivery at checkout
More Information
With selectable wash cycle times of 60, 120, and 180 seconds, the G504 also includes Hygiene and ESave cycles to enhance both cleanliness and energy efficiency. Featuring a 500 x 500 mm basket, electric soft-touch controls, and rotating top and bottom wash arms equipped with anti-block jets for thorough, uninterrupted cleaning.
Packed with powerful features, the G504 is an essential addition to any bar, café, or restaurant looking to provide a consistently exceptional drink service.
