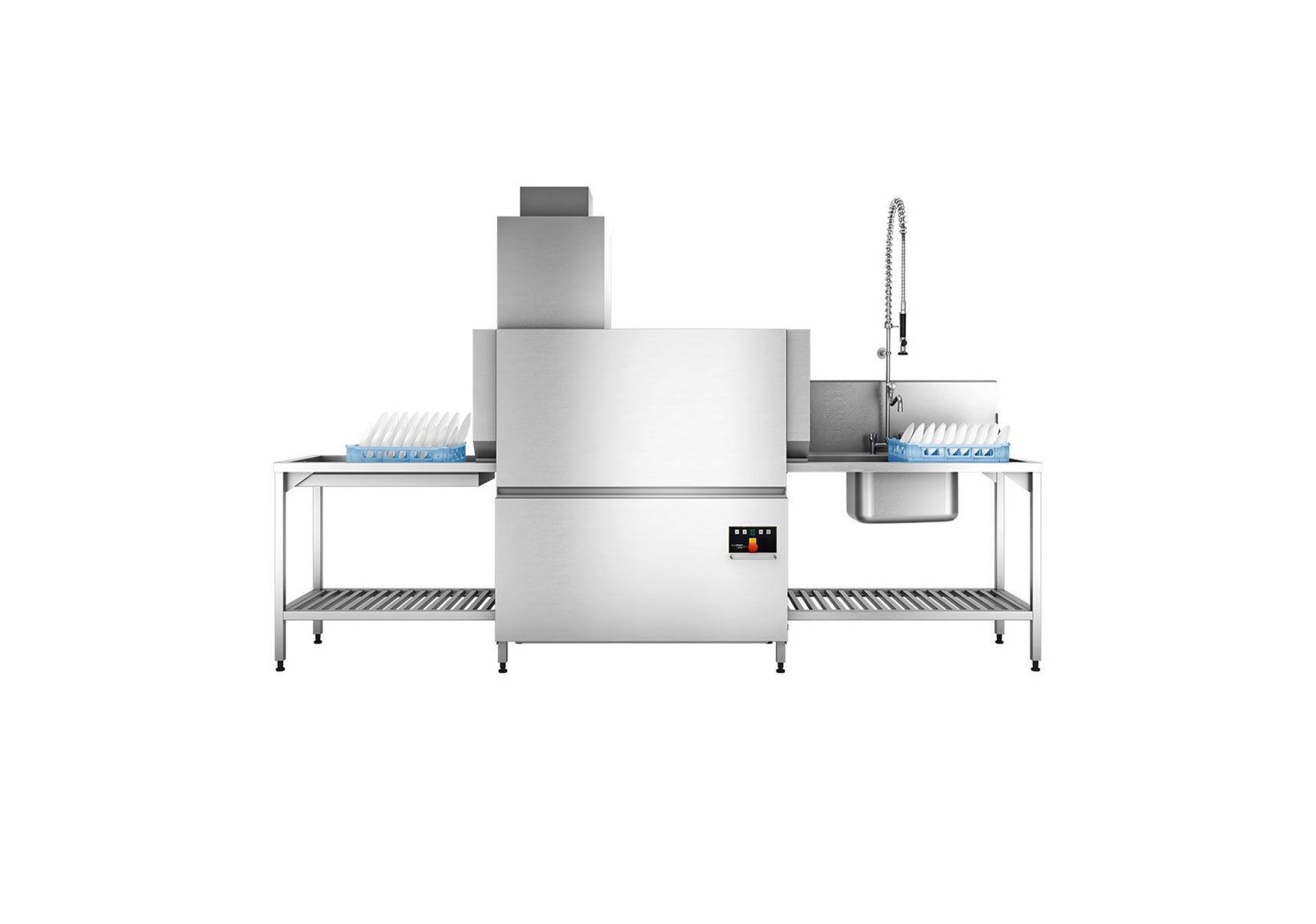

Hobart Ecomax Plus C815A Conveyor Dishwasher
Hobart Ecomax Plus C815A Conveyor Dishwasher
Couldn't load pickup availability
Features
Features
-Up to 120 racks (2160 plates) per hour (500 x 500mm basket - 18 plates)
-1 x Plate rack, 1 x Open Rack and 1 x Cutlery basket
-Double skinned with fully insulated door
-Compact design
-Low running costs
-Integral Class A Airgap – allows direct connection to mains and complies with all water authority bye-laws
-Hot or cold soft water connection recommended
-Full width counter balanced panoramic door – allows easy access for cleaning
-CONTACT+ ‘4 + 3‘ wash arm configuration for maximum wash coverage
-Dual rinse system as standard – delivers excellent rinsing results and economy using just 160ltrs/hr.
-Simple operation for filling, conveyor start and draining -easy to use and understand
-Continuous digital display of wash & rinse temperatures
-Wash tank is protected by full width strainer, with separate soil basket
-Stainless steel wash arms fitted with indented anti-block jects as well as slider mechanism for opening all wash pipes
-Easy to identify removable cleaning parts thanks to blue markers
-Rinse booster pump
-Electronic soft touch controls
-This unit does not have an in-built softener
-Made in Germany
Specifications
Specifications
-Wash Temperature - 60 Degrees
-Rinse Temperature - 82 Degrees
-Wash Tank Capacity - 105 litres
-Water Consumption/cycle - 160 litres/hr
-Water Pressure Req. - Cold or hot feed, 1.5-6 BAR (not to exceed 60°)
-Electrical Loading - 400/50/3 Hot fill 22.3kw (50Amps) or Cold fill 29.8kw (63Amps) - To be specified at time of order
-Useable Loading Height - 440 (mm)
-Dimensions - 2150 (h) x 1350 (w) x 775 (d) mm
Shipping Options
Shipping Options
3 - 5 days standard delivery
Warranty
Warranty
1 Year Parts and Labour
Share
Description
12 & 24 month interest free credit is available on this unit, find out more
The Ecomax Plus C815A Rack Conveyor Dishwasher is designed for high-volume operations where a standard hood machine simply isn't enough. Combining low running costs with intuitive controls, it consistently delivers sparklingly clean results, making it an ideal solution for busy commercial kitchens.
Complete Your Setup
Hobart offers a range of standard inlet and outlet tabling in set sizes to create a complete, efficient washing station. If the standard sizes aren’t suitable, we can also supply bespoke tabling made to your exact requirements — explore Hobart tabling options.
*Tabling not included
More Information
High Throughput – 120 Racks Per Hour
Engineered for environments with demanding throughput, the C815A is capable of processing up to 120 racks per hour, ensuring a hygienic, gleaming finish even during peak service times.
Economical and Easy to Operate
User-friendly controls make it simple to manage key functions such as filling, starting the conveyor, and draining. The continuous display of wash and rinse temperatures allows for easy monitoring, ensuring reliable and hygienic performance.
Equipped with a dual rinse system and a 3+4 wash arm configuration, the C815A delivers thorough and consistent cleaning. A Class ‘A’ air gap is built in to prevent dirty water from siphoning back into the mains, ensuring safety and compliance.
Economical to operate, this machine is also compatible with an optional exhaust heat exchanger, which can recover up to 11 kW of waste energy, further improving energy efficiency.
Designed for Easy Maintenance
The unit features a full-width panoramic door for quick and easy access, simplifying both cleaning and servicing. With a robust German-engineered design, the C815A is built for durability, long-term performance, and straightforward maintenance.
