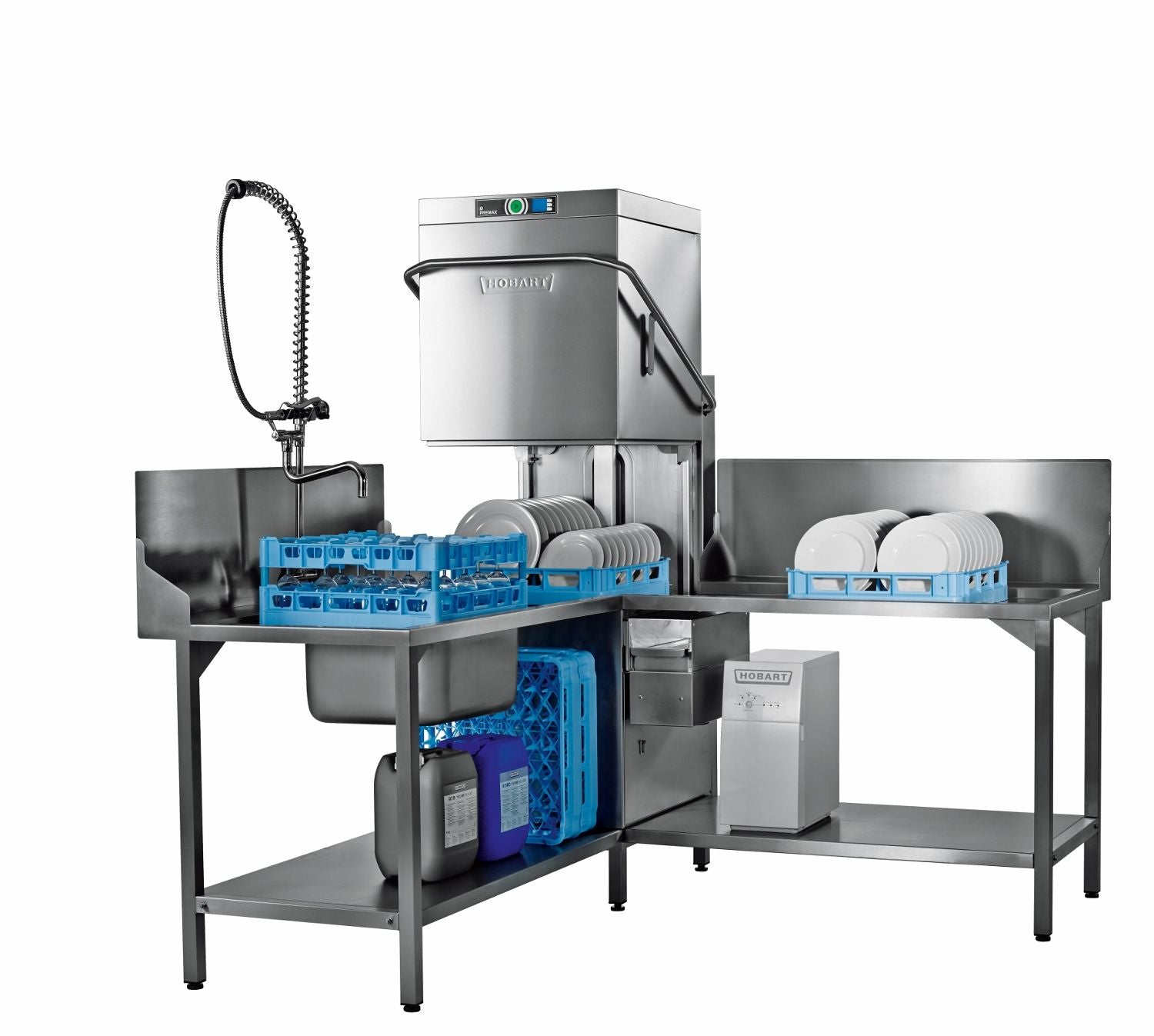

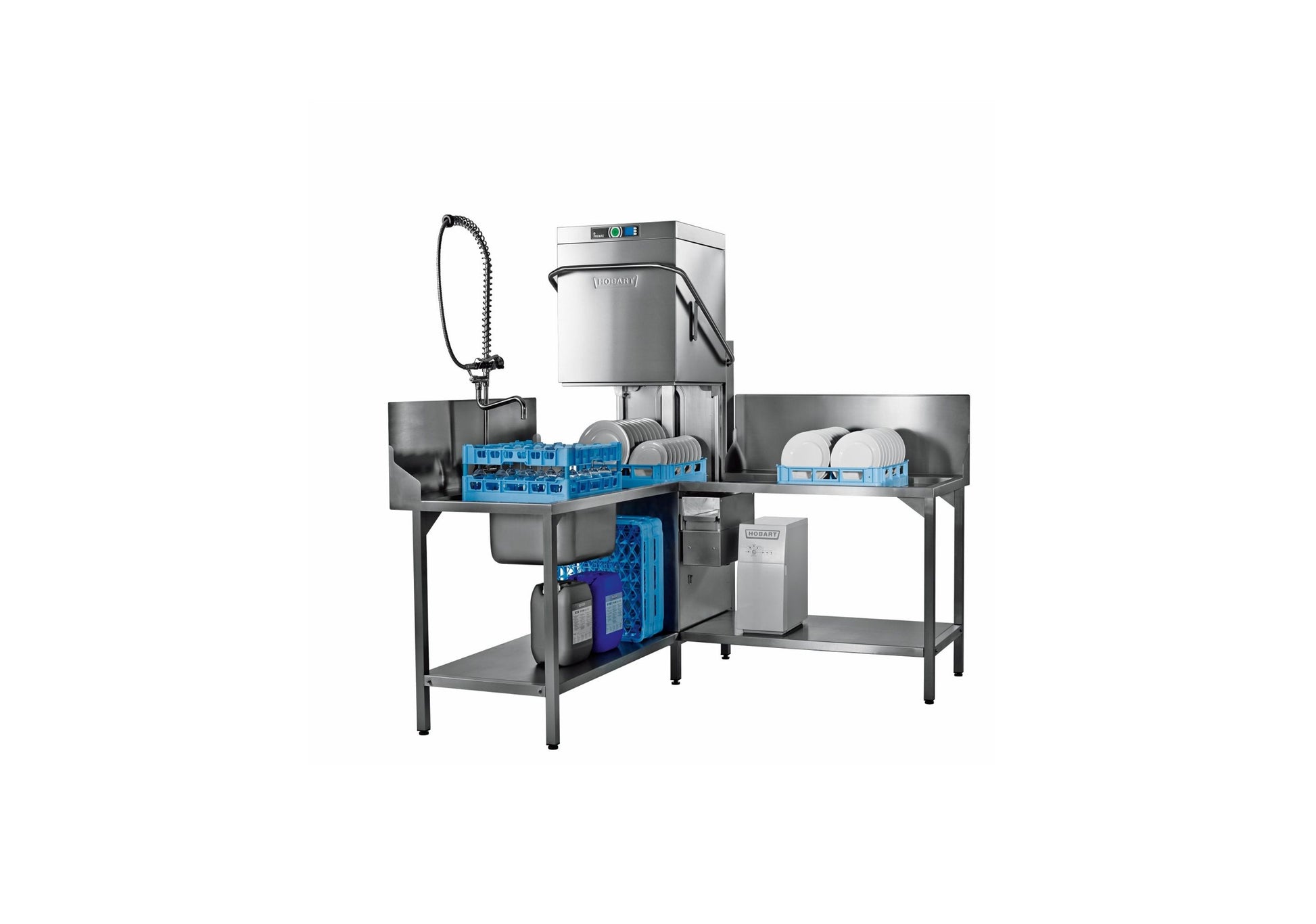

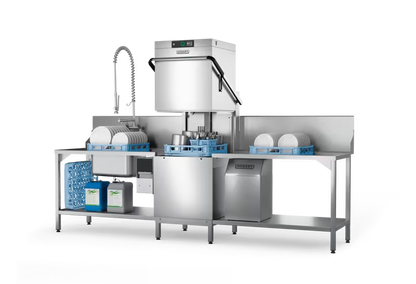

Hobart PREMAX AUP Pass Through Dishwasher
Hobart PREMAX AUP Pass Through Dishwasher
Couldn't load pickup availability
Features
Features
Four wash cycles: 52, 70, 170, 180 seconds and Special Programmes
Up to 70 racks per hour (500 x 500mm basket - 18 plates)
3 x Plate racks, 2 x Cup racks, 1 x Cutlery basket
Integrated WiFi module, designed to work with the Hobart WASHSMART app
The Eco programme lowers water consumption and shortens cycle times
Heavy duty wash cycle combining steam and turbo wash power
Vaporinse using just 1.4 Litres of water per cycle
For corner or straight through operation
SENSO-ACTIVE resource management, the control monitors how much soil gets into the machine, and automatically adjusts the programme accordingly
PERMANENT-CLEAN automatic soil removal, eliminates the need for pre-rinsing plates
Simple to use hood-mounted controls
Just 6 components to remove for cleaning
Easy to remove rack track
Automatic self flushing drain cycle on machine shut down
Audible indication of machine status
INTENSIV wash system delivers outstanding results and significantly reduces running costs
Optimised wash temperature maintained at above 65°C - gives superior results and shorter cycle times
Increased surface and core temperatures are reached - guaranteed sanitising performance and hygiene standards
POWER-PLUS wash programme delivers increased wash efficiency at the press of a button
Continuous Cycle - up to 20 minutes of washing for heavily soiled items. Can be interrupted at any time.
Consistent wash temperature with ECOTHERM heating
Interlocked strainer
Accurate integral detergent and rinsing dosing equipment
Genius X2 removes 20-40% more debris from the wash water and saves up to 40% on detergent usage
Supplied with integral fitted drain pump - allows quick and easy emptying and refilling.
Class A Airgap – allows direct connection to mains and complies with all water authority bye-laws.
Minimal wash tank capacity, reducing energy and water consumption
Unique 4-sided, fully insulated hood with ‘wrap around’ handle, prevents heat and steam escaping when the hood is raised helping save energy
Reduced final rinse temperatures - as a result of higher wash temperatures delivering higher core temperatures
440mm high hood opening. Extra large opening heights which allow double racking of cups and saucers/side plates
This unit does not have an in-built softener
Made in Germany
Specifications
Specifications
Basket Size - 500 x 500 (mm)
Loading Height - 440 (mm)
Wash Temperature - 60 Degrees
Rinse Temperature - 82 Degrees
Wash tank Capacity - 40 litres
Water Consumption/cycle - 2.0 litres / 1.4 litres Eco Mode
Water Pressure Req. - Cold or hot feed, 0.8 - 10.0 BAR (not to exceed 60°)
Electrical Loading - 3 Phase - 17kW 400/50/3 (fuse at 3 x 35A) Switchable to - 10.8kW 400/50/3 (fuse at 3 x 25A) or 8.3kW 400/50/3 (fuse at 3 x 16A)
Model Code - AUP-10B
Dimensions (mm):
Height - 1995 with hood open
Width - 835 with handle & soil removal system (635 between tables)
Depth - 742
Shipping Options
Shipping Options
3 - 5 Working Day Standard Delivery
Warranty
Warranty
Warranty - 1 Year Parts and Labour
Share
Description
12 & 24 month interest free credit is available on this unit, find out more
The PREMAX AUP-10B is one of the most advanced and cost-effective dishwashers available. Built on the proven reliability of Hobart's pass through dishwashers, it adds enhanced features that make it a top choice for those who want outstanding performance without compromise.
Options:
- Water softener - optional. If required please see our full range of external water softeners or see the Hobart PREMAX AUPS
Complete Your Setup
Hobart offers a range of standard inlet and outlet tabling in set sizes to create a complete, efficient washing station. If the standard sizes aren’t suitable, we can also supply bespoke tabling made to your exact requirements — explore Hobart tabling options.
For sites in hard water areas we strongly recommend a water softener is fitted to eliminate limescale damage.
*Tabling not included
More Information
Powerful Cleaning, Every Time
With four flexible wash cycles (52, 70, 170, and 180 seconds) and a range of special programmes, the AUP can handle up to 70 racks per hour (500 x 500 mm baskets, holding 18 plates each). For tough cleaning jobs, the heavy-duty cycle combines steam and turbo power to deliver excellent results. Activate the POWER-PLUS wash with a single button to boost performance, or switch to continuous mode for up to 20 minutes of uninterrupted cleaning, perfect for heavily soiled items.
Smarter, More Economical Operation
This model is designed to help you cut down on your running costs. The Eco programme reduces both water use and cycle times, helping you save on your energy and expenses. With the Vaporinse feature, each cycle uses just 1.4 litres of water, and the Genius X² system improves soil removal by 20–40% while cutting detergent usage by as much as 40%. Its efficient wash tank design also plays a role in reducing your overall energy use and water consumption.
Designed for Simplicity
Day-to-day use is made easier thanks to Hobart's thoughtful design. The integrated WiFi module connects to the Hobart WASHSMART app, giving you real-time updates and insights. Hood-mounted controls offer straightforward operation, and maintenance is quick and simple thanks to an easy-to-remove rack track and just six removable components for cleaning.
