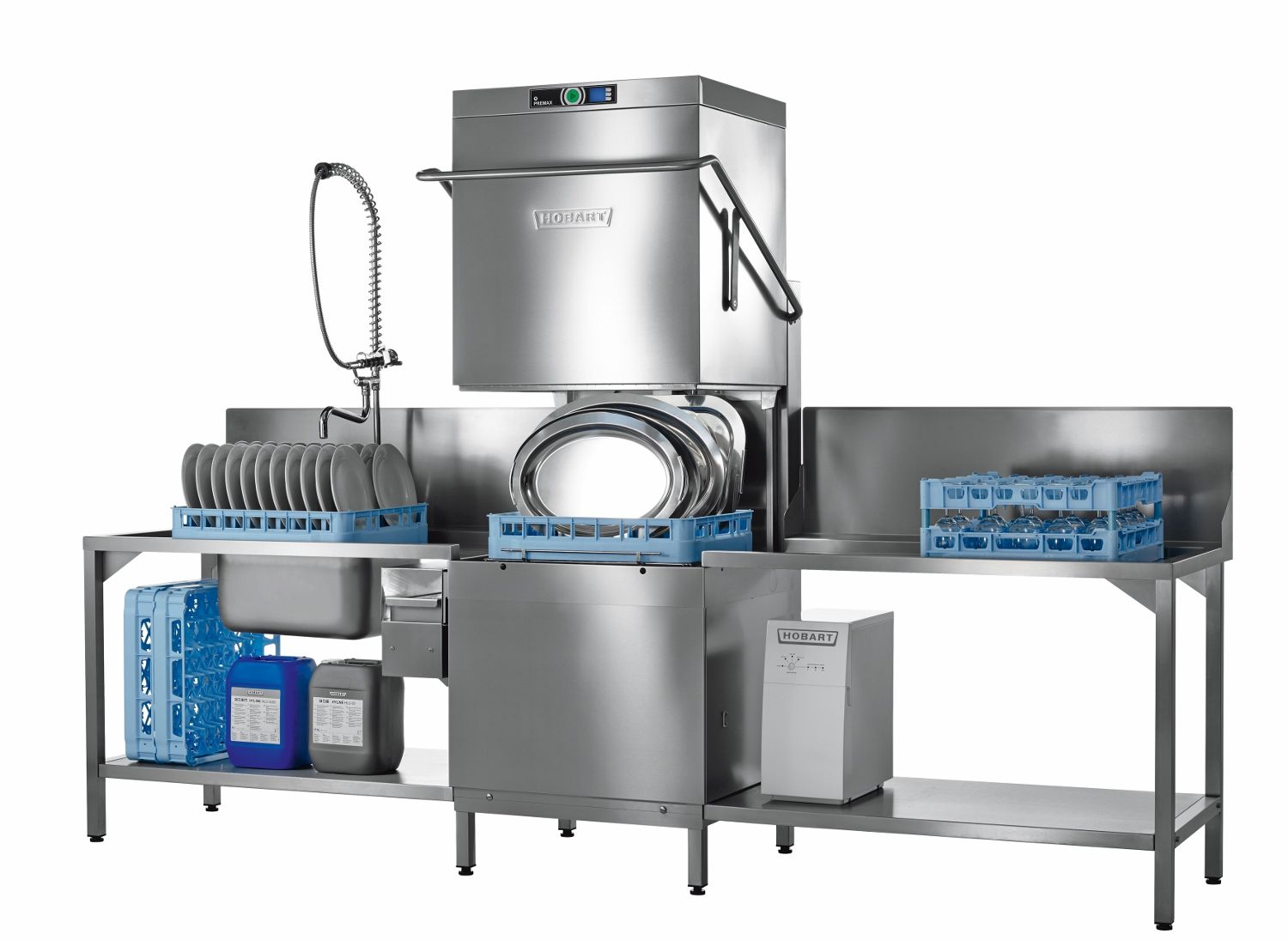

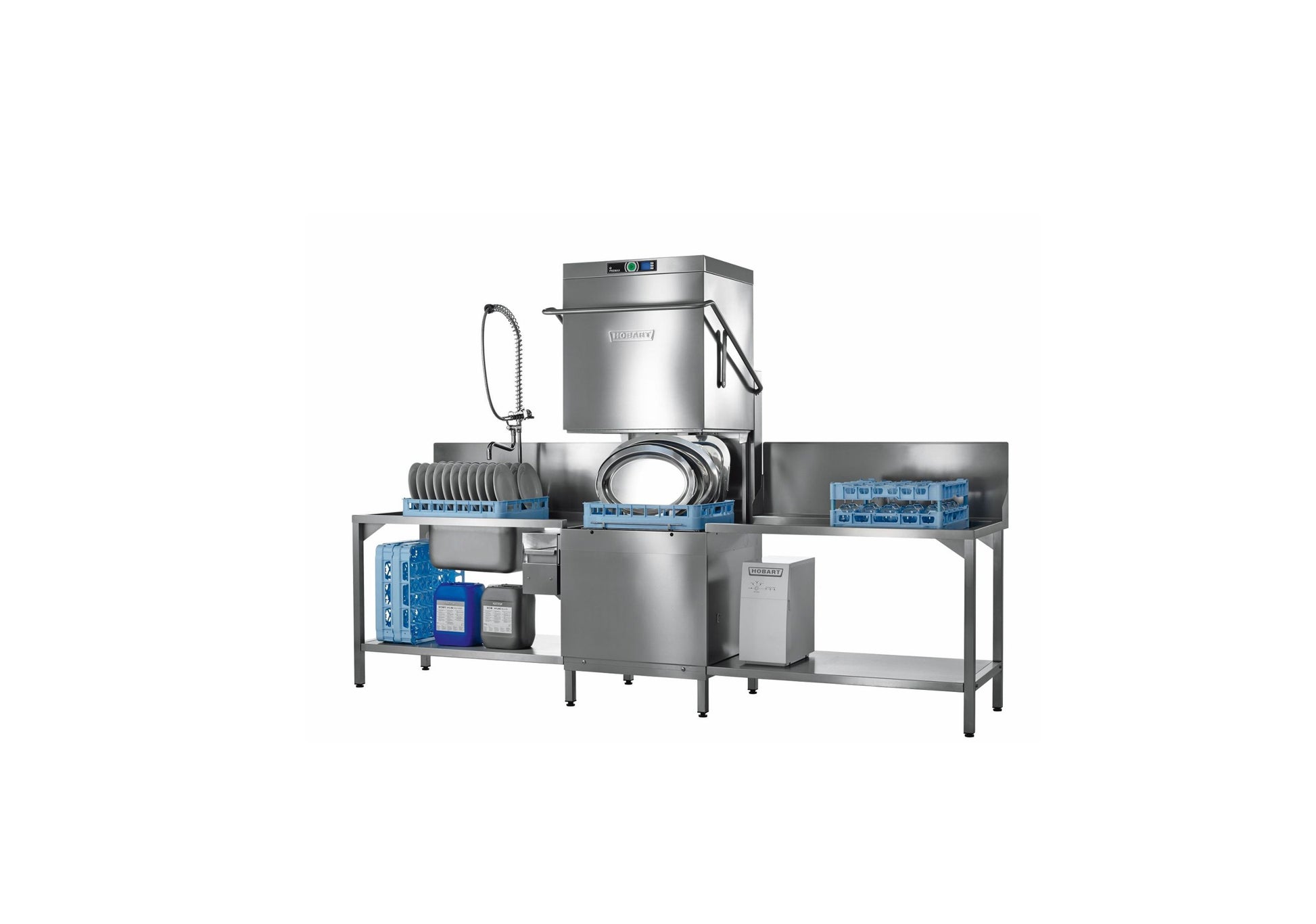

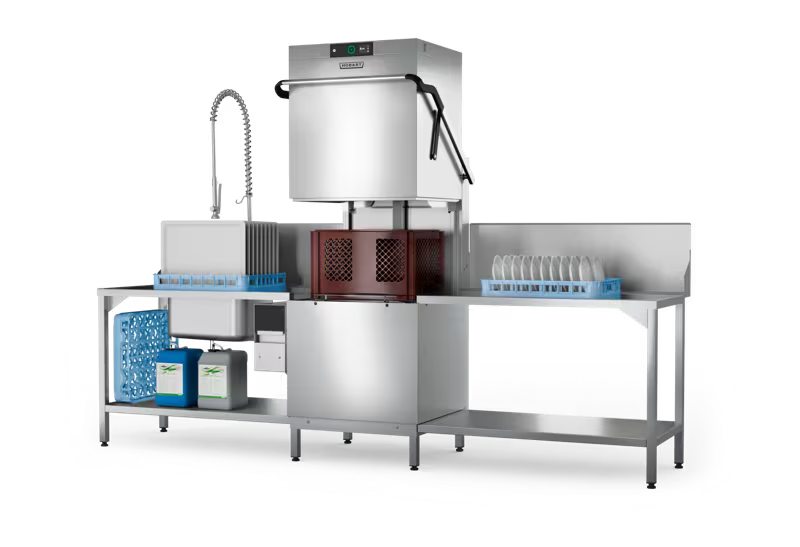

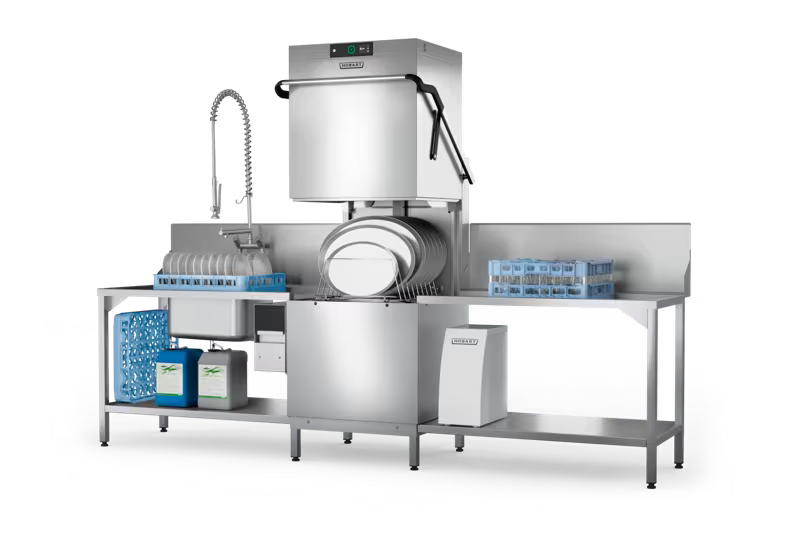

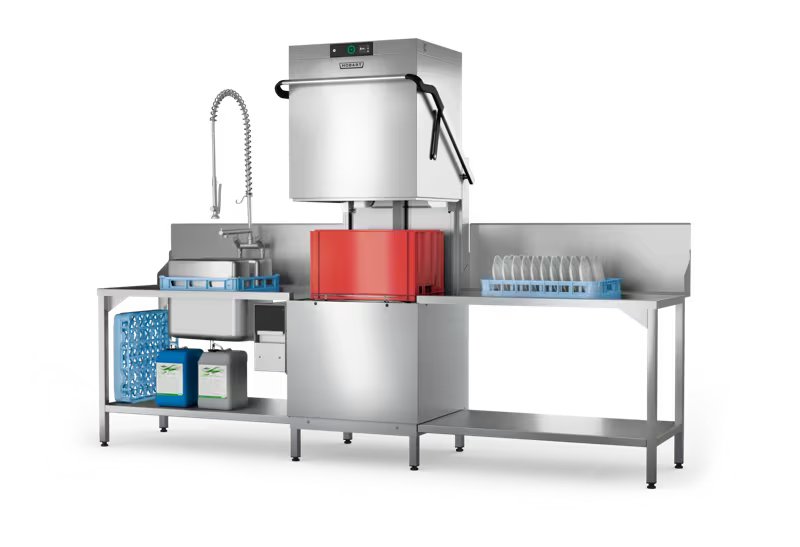

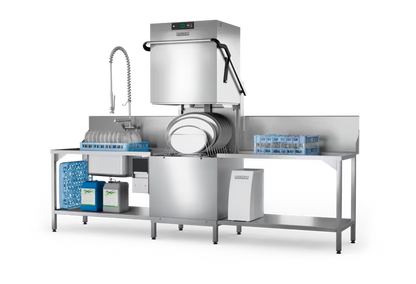

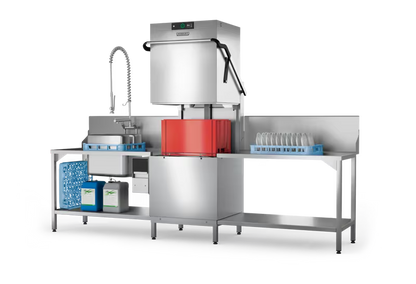

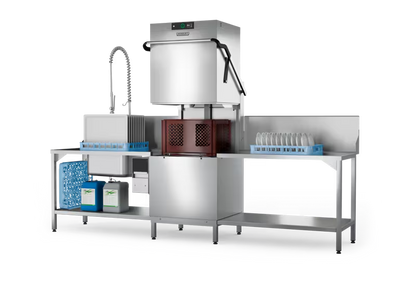

Hobart PREMAX AUPL Pass Through Dishwasher
Hobart PREMAX AUPL Pass Through Dishwasher
Couldn't load pickup availability
Features
Features
Four wash cycles: 52, 70, 170, 180 seconds and Special Programmes
Up to 70 racks per hour (500 x 500mm basket - 18 plates)
1 x Plate racks, 2 Open Racks, 1 x Tray rack, 1 x Cutlery basket
The Eco programme lowers water consumption and shortens cycle times
The large hood offers space for two 1/1 GN boxes
Heavy duty wash cycle combining steam and turbo wash power
Vaporinse using just 1.4 Litres of water per cycle
For corner or straight through operation
SENSO-ACTIVE resource management, the control monitors how much soil gets into the machine, and automatically adjusts the programme accordingly
PERMANENT-CLEAN automatic soil removal, eliminates the need for pre-rinsing plates
CLIP-IN wash and rinse arms
Simple to use hood-mounted controls
Just 6 components to remove for cleaning
Easy to remove rack track
Automatic self flushing drain cycle on machine shut down
Audible indication of machine status
INTENSIV wash system delivers outstanding results and significantly reduces running costs
Optimised wash temperature maintained at above 65°C - gives superior results and shorter cycle times
Increased surface and core temperatures are reached - guaranteed sanitising performance and hygiene standards
POWER-PLUS wash programme delivers increased wash efficiency at the press of a button
Continuous Cycle - up to 20 minutes of washing for heavily soiled items. Can be interrupted at any time
Interlocked strainer
Accurate integral detergent and rinsing dosing equipment
Genius X2 removes 20-40% more debris from the wash water and saves up to 40% on detergent usage
Supplied with integral fitted drain pump - allows quick and easy emptying and refilling.
Class A Airgap – allows direct connection to mains and complies with all water authority bye-laws
Minimal wash tank capacity, reducing energy and water consumption
Unique 4-sided, fully insulated hood with ‘wrap around’ handle, prevents heat and steam escaping when the hood is raised helping save energy
Reduced final rinse temperatures - as a result of higher wash temperatures delivering higher core temperatures

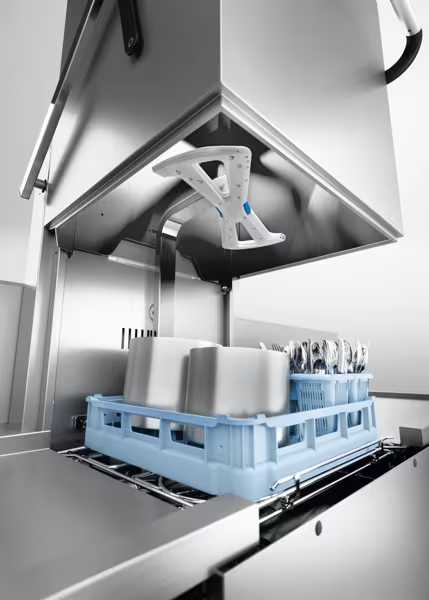

440mm high hood opening. Extra large opening heights which allow double racking of cups and saucers/side plates
This unit does not have an in-built softener
Made in Germany
Specifications
Specifications
Basket Size - 500 x 500 (mm)
Loading Height - 540 (mm)
Wash Temperature - 60 Degrees
Rinse Temperature - 82 Degrees
Wash tank Capacity - 40 litres
Water Consumption/cycle - 2 litres / 1.4 litres Eco Mode
Water Pressure Req. - Cold or hot feed, 0.8 - 10.0 BAR
Electrical Loading - 3 Phase - 17kW 400/50/3 (fuse at 3 x 35A) Switchable to - 10.8kW 400/50/3 (fuse at 3 x 25A) or 8.3kW 400/50/3 (fuse at 3 x 16A)
Model Code - AUPL-10B
Dimensions (mm):
Height - 2195 with hood open
Width - 935 with handle & soil removal system (735 between tables)
Depth - 742
Shipping Options
Shipping Options
3 - 5 Working Day Standard Delivery
Warranty
Warranty
Warranty - 1 Year Parts and Labour
Share
Description
12 & 24 month interest free credit is available on this unit, find out more
Part of Hobart's advanced PREMAX-AUP Series, the AUPL-10B introduces a unique soil removal system that sets a new benchmark for efficiency and innovation in commercial dishwashing.
Options:
- Water softener - optional. If required please see our full range of external water softeners or see the Hobart PREMAX AUPLS
Complete Your Setup
Hobart offers a range of standard inlet and outlet tabling in set sizes to create a complete, efficient washing station. If the standard sizes aren’t suitable, we can also supply bespoke tabling made to your exact requirements — explore Hobart tabling options.
For sites in hard water areas we strongly recommend a water softener is fitted to eliminate limescale damage.
This unit is book and build, therefore delivery time may vary
*Tabling not included
More Information
Built to Perform When It Matters Most
Designed to always keep pace in fast-moving kitchens, the AUPL-10B features four cycle times, 52, 70, 170, and 180 seconds, plus a selection of special programmes to meet varying cleaning needs. It can handle up to 70 racks per hour using 500 x 500mm baskets. When extra cleaning power is needed, the heavy-duty cycle combines steam and turbo power to tackle stubborn food residue with ease. For continuous cleaning of heavily soiled items, the extended wash option can run uninterrupted for up to 20 minutes.
Efficiency That Cuts Costs
Smart features make the AUPL-10B as economical as it is effective. The Eco programme helps to reduce your water usage and shortens cycle times, while the Vaporinse function keeps water consumption to just 1.4 litres per cycle. The integrated PERMANENT-CLEAN system removes food waste automatically, eliminating the need for pre-rinsing and cutting down on prep time. With the Genius X² system filtering out 20–40% more debris and reducing detergent use by up to 40%, you’ll save on both water and chemicals. A low-capacity wash tank further contributes to your energy and water savings.
User-Friendly by Design
Operating the machine is straightforward, thanks to its clear, hood-mounted controls and simple maintenance features. Audible alerts let you know when a cycle is complete or when it’s time to top up salt or chemicals. With just six removable parts and a detachable rack track, cleaning the unit is quick and hassle-free. The generous 440 mm hood opening also allows for double stacking of cups, saucers, and side plates, ideal for handling high-volume loads.
