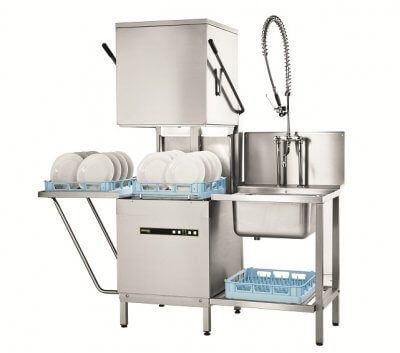

Hobart Ecomax H604 Pass Through Dishwasher
Hobart Ecomax H604 Pass Through Dishwasher
Couldn't load pickup availability
Features
Features
Up to 48 racks (850 plates) per hour (500 x 500mm basket - 18 plates)
A choice of 3 wash cycles: 75, 150 and 180 seconds
440mm loading height - capacity for large items including pizza plates
Unique 4 sided fully enclosed hood that prevents heat and steam escaping and saves energy
Compact 21 litre wash tank, less water consumption, less electric to heat, lower running costs
Rotating upper and lower rinse arms with indented anti-block jets
Easy strip down for quick and effective cleaning
Suitable for straight through or corner operation
Efficient wash, rinse and filtration systems – ensures thorough and consistent cleaning performance
Self flushing cycle – helps maintain hygiene standards
Energy saving standby features
Thermostop rinse control which ensures that the machine will only rinse at the correct temperature
Integral booster pump, detergent and rinse aid dosing equipment
Supplied with integral fitted drain pump - allows quick and easy emptying and refilling.
Class A Airgap – allows direct connection to mains and complies with all water authority bye-laws.
Electronic soft touch controls
Digital temperature display
Back panel available as an optional extra for island sited machines
1 x plate rack and cutlery basket
WRAS Approved
Made in Germany
Specifications
Specifications
Basket Size - 500 x 500 (mm)
Loading Height - 440 (mm)
Wash Temperature - 60 Degrees
Rinse Temperature - 82 Degrees
Wash Tank Capacity - 21 litres
Water Consumption/cycle - 2.3 litres
Water/Pressure Req. - Cold or hot feed, 0.4 - 10.0 BAR (not to exceed 60°)
Usable Loading Height - 440 (mm)
Electric kW - 6.6kW/3 x 16Amp 400/50/3 Switchable to 4.5kW/1 x 25Amp 230/50/1
Model Code - H604
Dimensions (mm):
Height - 1960 with hood open
Width - 713 with handle (635 between tables)
Depth - 742
Shipping Options
Shipping Options
3 - 5 Working Day Standard Delivery
Next Working Day Delivery Available
(Select at checkout)
Warranty
Warranty
Warranty - 1 Year Parts and Labour
Share
Description
Free Next Working Day Delivery available on orders placed before 1PM*
12 & 24 month interest free credit is available on this unit, find out more
The Hobart Ecomax H604, a powerful and efficient passthrough dishwasher designed to meet the demands of busy commercial kitchens. With its upgraded, user-friendly control panel and built-in USB interface, servicing, diagnostics, and software updates are quicker and more straightforward than ever. Packed with practical features and dependable performance, the H604 stands out as one of the most reliable hood-type dishwashers available.
Options:
- Water softener - optional. If required please see our full range of external water softeners or see the Hobart Ecomax H604S
Complete Your Setup
Hobart offers a range of standard inlet and outlet tabling in set sizes to create a complete, efficient washing station. If the standard sizes aren’t suitable, we can also supply bespoke tabling made to your exact requirements — explore Hobart tabling options.
For sites in hard water areas we strongly recommend a water softener is fitted to eliminate limescale damage.
*Terms and Conditions apply, select Next Day Delivery at checkout
*Tabling not included
More Information
Flexible Setup for Any Kitchen
The H604 is built for flexibility, supporting both corner and straight-through configurations to suit a variety of kitchen layouts. It delivers strong performance with rapid fill and heat-up times, helping you keep up during busy periods.
Simple and Hygienic Operation
Operating the H604 is easy thanks to its easy-to-use electronic controls and visible temperature display, helping reduce the chance of user errors. Hygiene is also a top priority of the H604, the machine includes a self-flushing cycle and a class ‘A’ air gap to maintain high sanitary standards. When it comes to cleaning, the H604 is designed for a quick and straightforward strip-down, saving you valuable time.
Energy-Saving Design
The H604 incorporates energy-efficient technology to keep your running costs low. Its unique 4-sided hood, exclusive to Hobart, improves energy retention during each cycle. Combined with a generous 440mm loading height (the largest in its class) and strong performance stats, the H604 is an excellent option for caterers looking to maximise their efficiency without compromising on results.
