Hobart

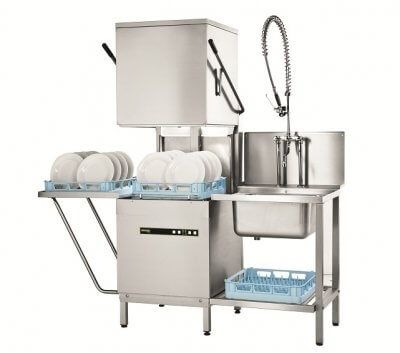

Hobart Ecomax H604S Pass Through Dishwasher
Hobart Ecomax H604S Pass Through Dishwasher
Couldn't load pickup availability
Features
Features
Up to 48 racks (850 plates) per hour (500 x 500mm basket - 18 plates)
A choice of 3 wash cycles: 75, 150 and 180 seconds
In-built Water Softener - ensures optimum water quality
440mm loading height - capacity for large items including pizza plates
Unique 4 sided fully enclosed hood that prevents heat and steam escaping and saves energy
Compact 21 litre wash tank, less water consumption, less electric to heat, lower running costs
Rotating upper and lower rinse arms with indented anti-block jets
Easy strip down for quick and effective cleaning
Suitable for straight through or corner operation
Efficient wash, rinse and filtration systems – ensures thorough and consistent cleaning performance
Self flushing cycle – helps maintain hygiene standards
Energy saving standby features
Thermostop rinse control which ensures that the machine will only rinse at the correct temperature
Integral booster pump, detergent and rinse aid dosing equipment
Supplied with integral fitted drain pump - allows quick and easy emptying and refilling
Class A Airgap – allows direct connection to mains and complies with all water authority bye-laws
Electronic soft touch controls
Digital temperature display
Back panel available as an optional extra for island sited machines
1 x plate rack and cutlery basket
WRAS Approved
Made in Germany
Specifications
Specifications
Basket Size - 500 x 500 (mm)
Loading Height - 440 (mm)
Wash Temperature - 60 Degrees
Rinse Temperature - 82 Degrees
Wash Tank Capacity - 21 litres
Water Consumption/cycle - 2.3 litres
Water/Pressure Req. - Cold or hot feed, 0.4 - 10.0 BAR (not to exceed 60°)
Electric - 6.6kW/3 x 16Amp 400/50/3 Switchable to 4.5kW/1 x 25Amp 230/50/1
Model Code - H604S
Dimensions (mm):
Height - 1960 with hood open
Width - 713 with handle (635 between tables)
Depth - 742
Shipping Options
Shipping Options
3 - 5 Working Day Standard Delivery
Next Working Day Delivery Available
(Select at checkout)
Warranty
Warranty
Warranty - 1 Year Parts and Labour
Share
Description
Free Next Working Day Delivery available on orders placed before 1PM*
12 & 24 month interest free credit is available on this unit, find out more
The Hobart Ecomax H604S is a durable passthrough dishwasher designed to deliver reliable performance in demanding kitchens. Featuring an upgraded, easy-to-navigate control panel and an integrated USB interface. With a strong set of features and dependable operation, the H604S stands out as a smart choice for professional kitchens.
Complete Your Setup
Hobart offers a range of standard inlet and outlet tabling in set sizes to create a complete, efficient washing station. If the standard sizes aren’t suitable, we can also supply bespoke tabling made to your exact requirements — explore Hobart tabling options.
*Terms and Conditions apply, select Next Day Delivery at checkout
*Tabling not included
More Information
Built-In Water Softener
What sets the H604S apart from the standard H604 is the addition of an integrated water softener, an essential feature for kitchens located in hard water areas. By reducing the risk of limescale build-up, the softener helps to protect internal components and extend the service life of the machine.
Compact and Convenient
While external softeners are an option, the H604S eliminates the need for extra equipment or floor space. The in-built softener seamlessly regenerates and includes a handy alert system to let you know when it's time to top up the salt, making maintenance simple and stress-free.
User-Friendly Design
The H604S retains the same smart features found in the H604, including intuitive electronic controls, an energy-saving design, and high-quality construction. The machine is easy to clean, thanks to an easy strip-down, and its self-flushing cycle helps maintain hygiene with minimal effort. Simple to operate and straightforward to maintain, the H604S is built to keep your kitchen running smoothly.
